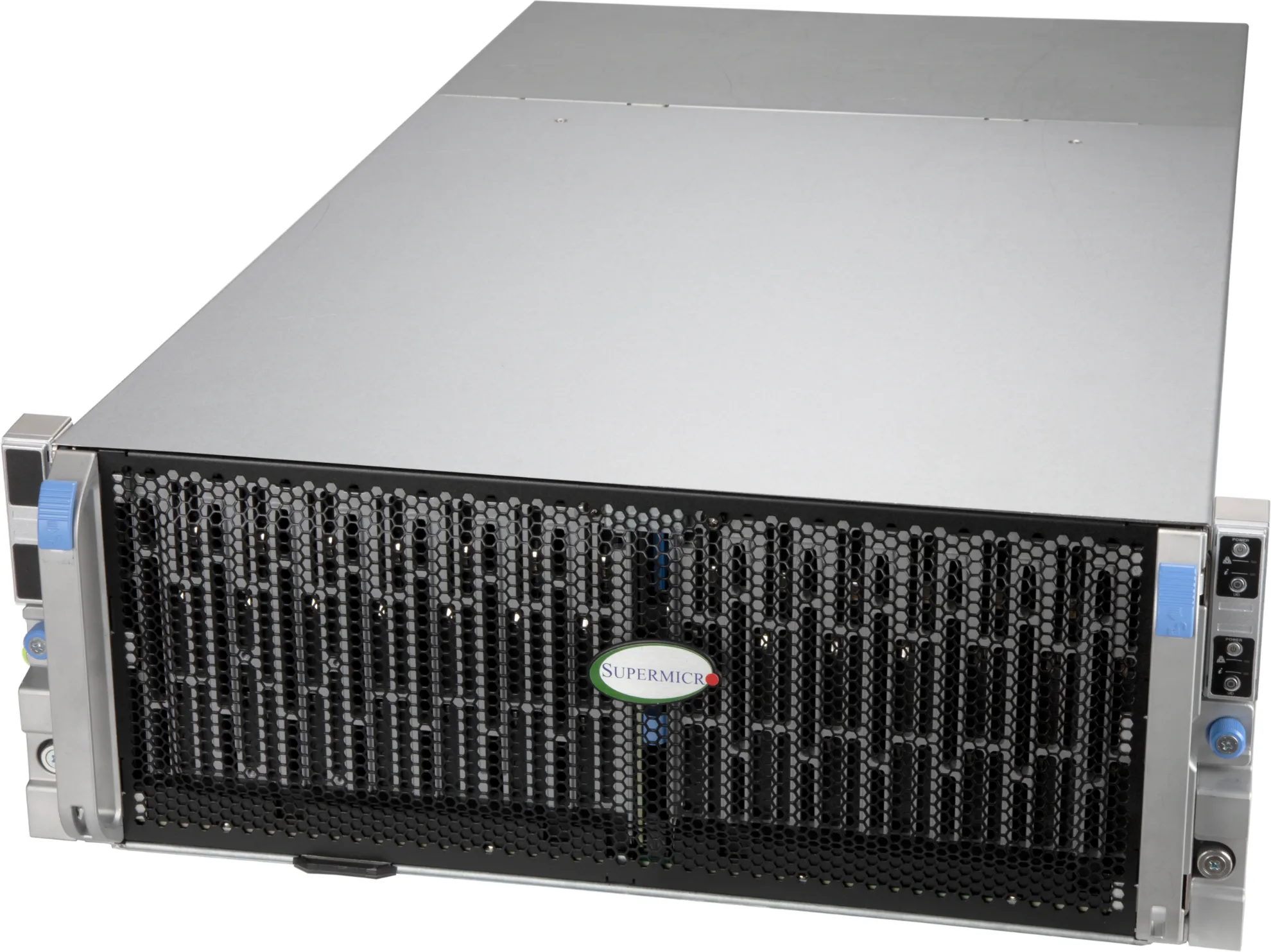

| Form Factor | 4U |
Dimensions
| Height
6.96" (177 mm)
Width
17.6" (447 mm)
Depth
32" (813 mm)
Gross Weight
170 lbs (77.11 kg)
Net Weight
107 lbs (48.53 kg)
Packaging (W x H x L)
N/A
Palletized Packing (W x H x L)
35.82" (805 mm) x 29.92" (755 mm) x 53.15" (1135 mm)
Available Color
Black
|
| Drive Bays | 60x 3.5"/2.5" hot-swap SAS/SATA drive bay with SES3 |
Qualified SAS Controllers
| AOC-SAS3-9500-8E: SAS 12Gb/s PCIe 4.0 8-Port Host Bus Adapter
AOC-SAS3-9500-16E: SAS 12Gb/s PCIe 4.0 16-Port Host Bus Adapter
AOC-SAS3-9580-8I8E: SAS 12Gb/s PCIe 4.0 8-Port MegaRAID Controller |
| Backplane | Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node system,RoHS
Adapter board between Expander and HDD BPN for CSE-947H,RoHS
IPMI control board for CSE-947H top-load 60/90-bay JBOD
15-Port HDD Backplane for CSE-947H 60/90-bay top load chassis/server.,RoHS
JBOD I/O board for CSE-947H top-load 60/90-bay JBOD unit
SAS3 expander module for top-load 60/90-bay single/twin/SBB CSE-947 project,RoHS |
| Front Panel | Button
Power On/Off button
Unit Identification (UID) button
LED
HDD activity LED
1 Network activity LEDs
System Information LED
Unit Identification (UID) LED
Power LED |
Systems Cooling
| Fans
6x 8cm hot-swap redundant PWM cooling fan(s)
|
System Monitoring
| IPMI
|
Operating Environment (System)
| Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
|
Power Supply
| 1600W redundant power supply, Platinum level with PMBus & I2C
Power Efficiency
94%
Total Output Power and Input
1000W with Input 100 - 127Vac
1600W with Input 200 - 240Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
265 x 73.5 x 40 mm
Output Type
Backplanes (gold finger)
+12V
Max: 82A / Min: 0.1A (100Vac - 120Vac)
Max: 132A / Min: 0.1A (200Vac - 240Vac)
+12Vsb
Max: 2A / Min: 0.2A
|
