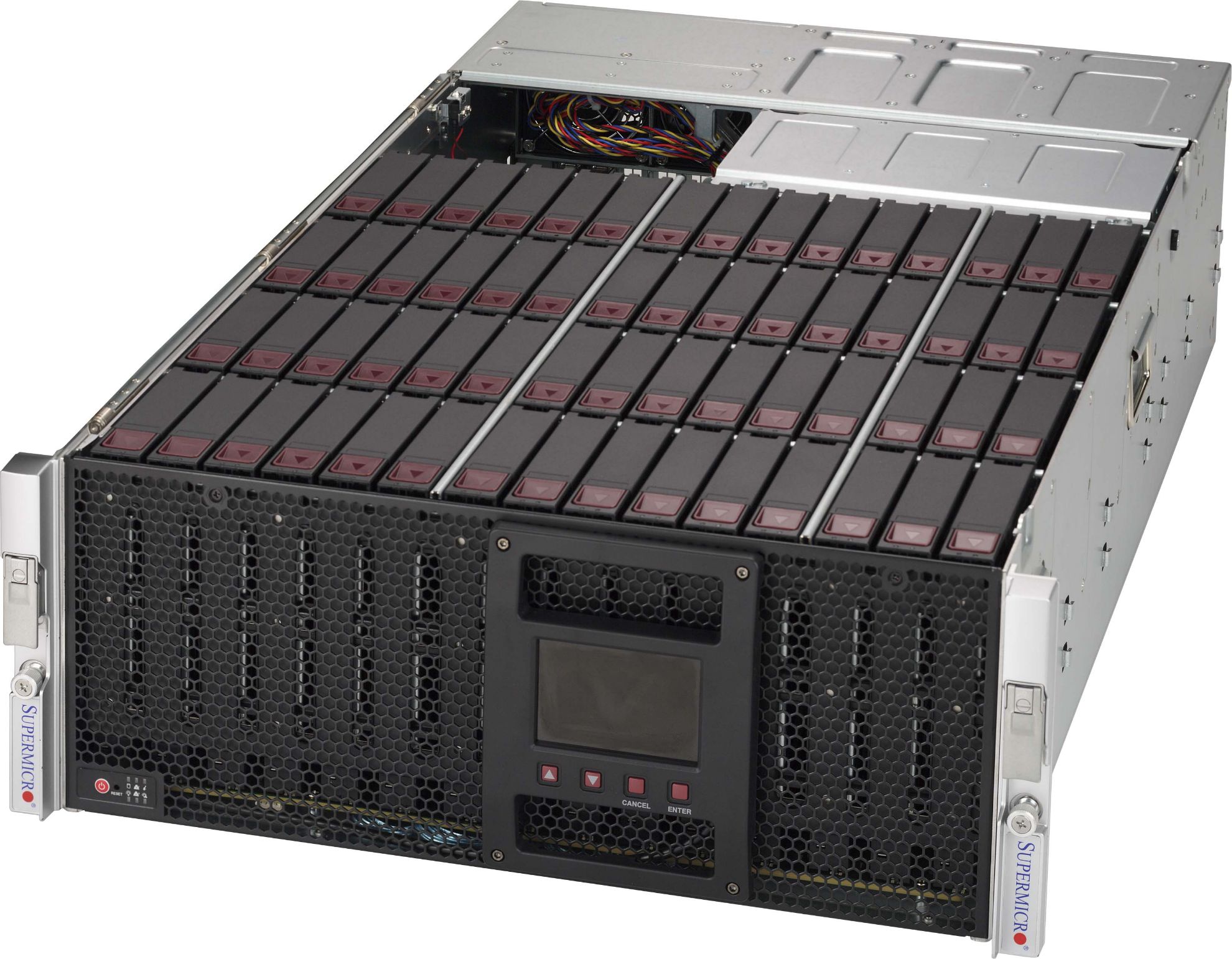

| Form Factor | 4U JBOD storage chassis |
Dimensions
| Height
7" (178 mm)
Width
17.2" (437 mm)
Depth
26" (660 mm)
32.5" (825.5 mm) with cable management arm installed
Gross Weight
120 lbs (54.43 kg)
Net Weight
85 lbs (38.56 kg)
Packaging (W x H x L)
N/A
Palletized Packing (W x H x L)
28" (711 mm) x 23" (584 mm) x 42.5" (1080 mm)
Available Color
Black
|
Drive Bays
| 45x 3.5" hot-swap SAS/SATA drive bay with SES3 |
Qualified SAS Controllers
| AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller
AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter |
| Backplane | 45-Port 4U SC946L Top-load SAS3 12Gbps expander backplane, support up to 45x 3.5-inch SAS3/SATA3 HDD/SSD |
Front Panel
| Button
Power On/Off button
Unit Identification (UID) button
LED
Power status LED
1 Network activity LEDs
System Information LED
Power Fail LED |
Systems Cooling
| Fans
5x 80mm rear hot-swap exhaust PWM fan(s)
|
System Monitoring
| IPMI
|
Operating Environment (System)
| Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 60°C (-40°F - 140°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
|
Power Supply
| 1600W 1U redundant power supply
Power Efficiency
96%
Dimensions (L x W x H)
265 x 73.5 x 40 mm
Output Type
Backplanes (gold finger)
Power Distributor
PDB-PT946S-L824
O/P: 12V/200
+5V Max: 25A
+3.3V Max: 25A
-12V Max: 0A
|
