NTS Elite Vault | Storage Server | VLT003U16-V3

Form Factor	3U Rackmount
Drive Bays	Hot-swap 16 Hot-swap 3.5" Drive Bays SAS or enterprise SATA HDD only recommended
Expander	AOM-SAS3-937EL-JB, features: 12Gb SAS3 HDD support Redundancy dual ported SAS architecture Robust AirMax server node connections (SBB specification)
On-Board Devices	SAS SAS3 (12Gbps) via AOM-SAS3-937EL-JB IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Front Panel	Buttons Power On/Off button System Reset button Alarm Mute Switch LEDs Power LED Hard Drive Activity LED 2 SAS link Activity LED System Overheat LED Power Fail LED
Dimensions	Height 5.12" (130mm) Width 17.2" (437mm) Depth 26.5" (673mm)
System Cooling	Fans 12x 40mm cooling fans
Power Supply (76mm Width)	1200W Redundant Power Supplies with PMBus Total Output Power 1000W/1200W Dimension (W x H x L) 76 x 40 x 336 mm Input 100-127Vac / 15-12A / 50-60Hz 200-240Vac / 8.5-7A / 50-60Hz 200-240Vdc / 8.5-7A (for CCC only) +12V Max: 83A / Min: 0A (100-127Vac) Max: 100A / Min: 0A (200-240Vac) Max: 100A / Min: 0A (200-240Vdc) +5Vsb Max: 4A / Min: 0A Output Type 19 Pairs Gold Finger Connector

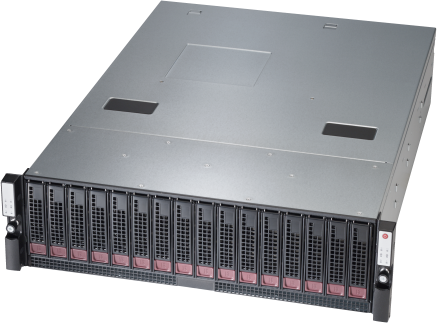

NTS Elite Vault storage JBOD 16-Bay Hot-Swap 3.5 Drive Storage Enclosure SAS3/SATA
