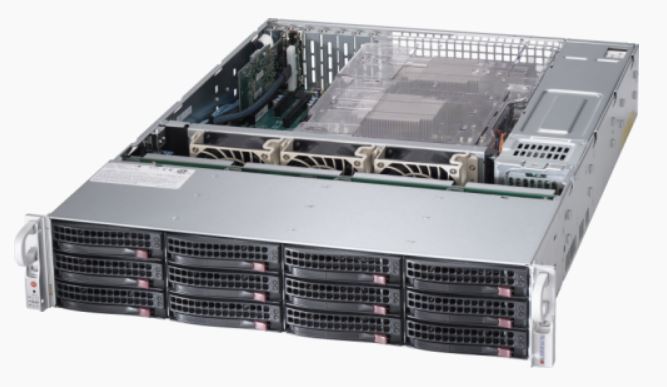

| Form Factor | 2U JBOD storage chassis |
Dimensions
| Height
3.5" (89 mm)
Width
17.2" (437 mm)
Depth
25.5" (647 mm)
Gross Weight
55 lbs (24.95 kg)
Net Weight
29 lbs (13.15 kg)
Packaging (W x H x L)
26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
Available Color
Black
|
| Drive Bays | 12x 3.5" hot-swap HDD bay for JBOD solution |
Qualified SAS Controllers
| AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
AOC-SAS3-9500-8E: SAS 12Gb/s PCIe 4.0 8-Port Host Bus Adapter
AOC-SAS3-9500-16E: SAS 12Gb/s PCIe 4.0 16-Port Host Bus Adapter
AOC-SAS3-9580-8I8E: SAS 12Gb/s PCIe 4.0 8-Port MegaRAID Controller |
| Backplane | 12-Port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD |
| Front Panel | Button
Power On/Off button
System Reset button
Unit Identification (UID) button
LED
1 Network activity LEDs |
Systems Cooling
| Fans
3x 80x38mm hot-swap cooling fan(s)
|
System Monitoring
| IPMI
|
Operating Environment (System)
| Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
|
Power Supply
| 600W / 650W 1U Redundant Power Supply
Power Efficiency
94%
Total Output Power and Input
650W with Input 200 - 240Vac
600W with Input 100 - 127Vac
650W with Input 200 - 240Vdc
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (gold finger)
+12V
Max: 54.16A / Min: 0A (200Vdc - 240Vdc)(for CCC only)
Max: 54.16A / Min: 0A (200Vac - 240Vac)
Max: 50A / Min: 0A (100Vac - 127Vac)
+5Vsb
Max: 4A / Min: 0A
Power Distributor
PDB-PT826-8824
O/P: 12V/135
+5V Max: 40A
+3.3V Max: 24A
-12V Max: 0.6A
|
