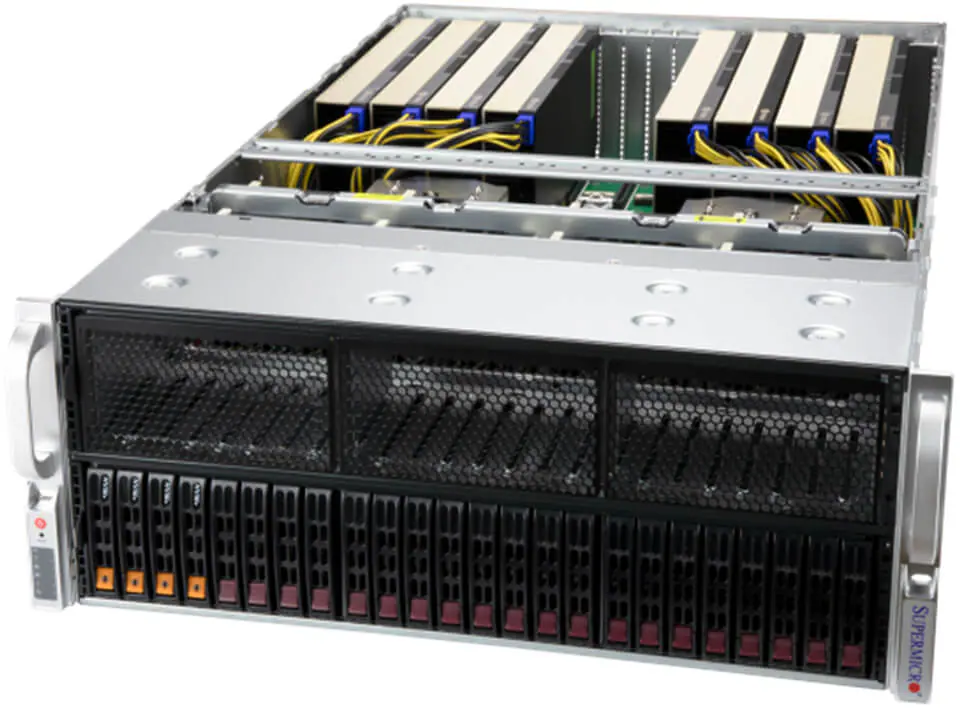

| Form Factor | 4U Rackmount
Enclosure: 437 x 178 x 737mm (17.2" x 7" x 29")
Package: 685 x 675 x 1041mm (27" x 26.57" x 41") |
Processor
| Dual processor(s)
AMD EPYC™ 9004/9005 Series Processors
(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Up to 160C/320T; Up to 512MB Cache per CPU |
| GPU | Max GPU Count: Up to 8 double-width GPUs
Supported GPU:
NVIDIA PCIe: H100, H100 NVL, A16, A30, A40, L4, L40S, RTX 6000 Ada Generation, A100, RTX A5000, RTX A6000, RTX
A5500, L40, RTX 4000 Ada Generation, RTX 4000 SFF Ada Generation, RTX 4500 Ada, RTX 5000 Ada, NVIDIA RTX
PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX A4000
AMD PCIe: Instinct™ MI210, Instinct™ MI100
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional) |
| System Memory | Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) |
| Drive Bays Configuration | Default: Total 6 bays
2 front hot-swap 2.5" SATA drive bays
4 front hot-swap 2.5" NVMe drive bays
Option A: Total 2 bays
2 front hot-swap 2.5" SATA drive bays
M.2: 1 M.2 PCIe 3.0 x4 NVMe slot (M-key) |
| Expansion Slots | Default
9 PCIe 5.0 x16 FHFL slots
Option A
10 PCIe 5.0 x16 FHFL slots |
| On-Board Devices | SATA: SATA (6Gbps)
Chipset: AMD SP5
Network Connectivity: 2 RJ45 10GbE
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 10 GBASE-T LAN ports
|
System Cooling
| Fans: Up to 8 heavy duty fans with optimal fan speed control
|
Power Supply
| 4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 32MB SPI Flash EEPROM
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
7 +1 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 100 lbs (45.3 kg)
Net Weight: 65.5 lbs (29.7 kg)
Available Color: Black Front & Silver Body
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
