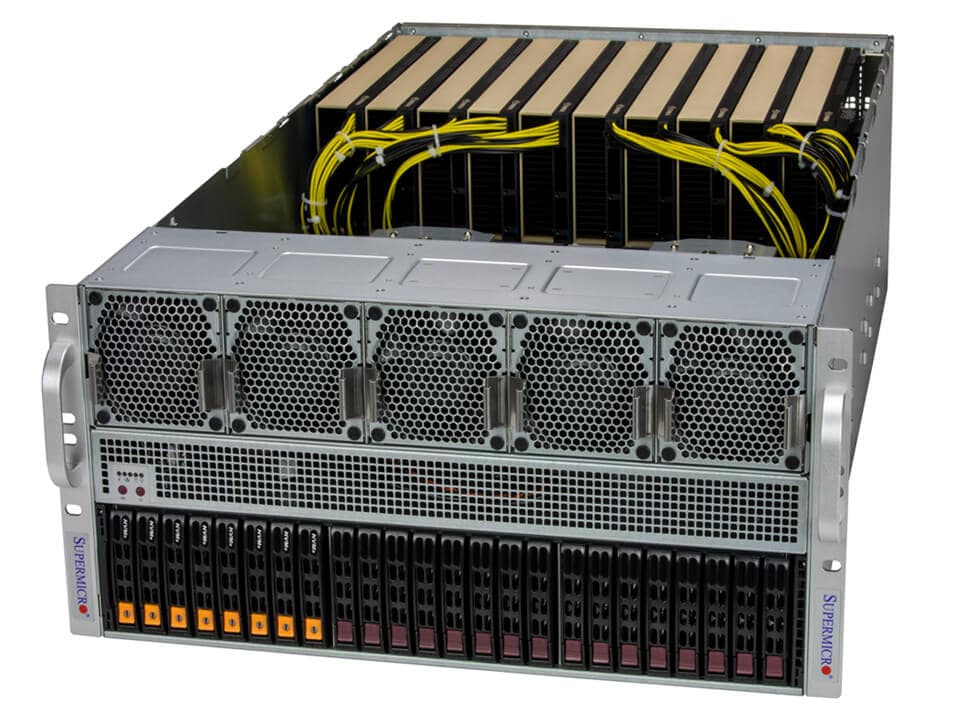

| Form Factor | 5U Rackmount
Enclosure: 438 x 222.5 x 786.1mm (17.2" x 8.75" x 31")
Package: 720 x 440 x 1080mm (28.34" x 17.32" x 42.51") |
Processor
| Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 64C/128T; Up to 320MB Cache per CPU |
| GPU | Max GPU Count: Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs
Supported GPU:
NVIDIA PCIe: H100 NVL, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), RTX 6000 Ada
Generation, L40S, L4
CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional) |
| System Memory | Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 16 bays
8 front hot-swap 2.5" NVMe drive bays
8 front hot-swap 2.5" SATA drive bays
Option A: Total 24 bays
8 front hot-swap 2.5" NVMe drive bays
8 front hot-swap 2.5" NVMe* drive bays
8 front hot-swap 2.5" SATA drive bays
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for
details)
M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | Default
13 PCIe 5.0 x16 FHFL slots |
On-Board Devices
| Chipset: Intel® C741
Network Connectivity: 2 RJ45 10GbE with Intel® X710-AT2
|
Input / Output
| 1 VGA port
|
System Cooling
| Fans: Up to 10 heavy duty fans with optimal fan speed control
Air Shroud: 1 Air Shroud
Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
|
Power Supply
| 4x 2700W Redundant Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 32MB SPI Flash EEPROM
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
8+4 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 100 lbs (45.3 kg)
Net Weight: 65.5 lbs (29.7 kg)
Available Color: Black Front & Silver Body
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
