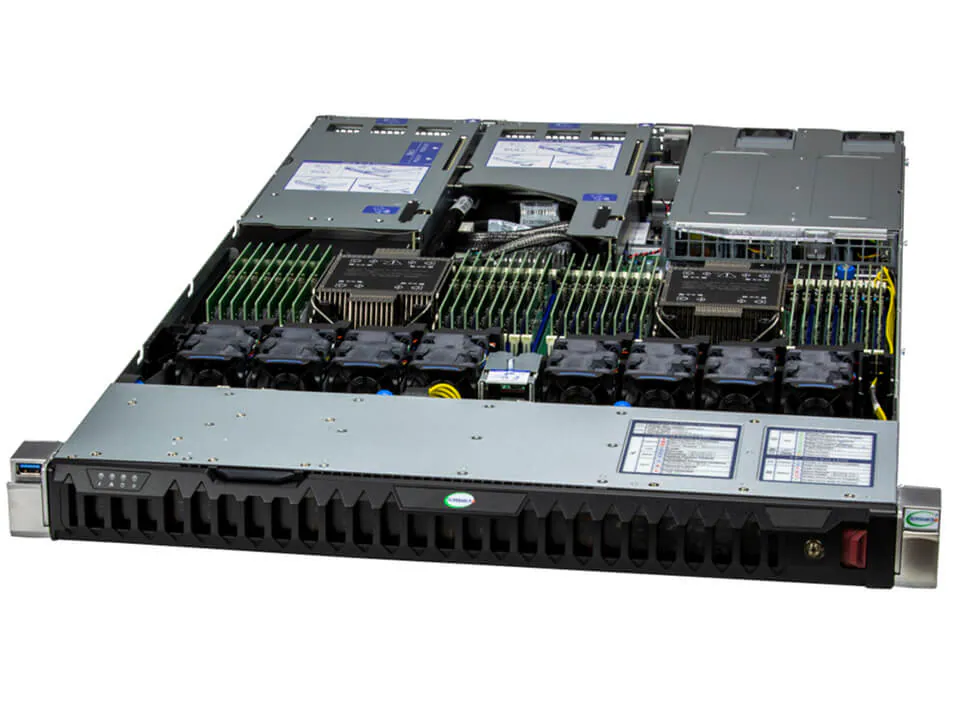

NTS Elite Command 1U Server Intel Xeon Scalable Enterprise Platform

1U Hyper with 8 hot-swap 2.5 NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 + 1 PCIe 5.0 x16 AIOM slot

Part#: CMDI001U8-V3

Key Applications

Virtualization
Software-defined Storage
AI Inference and Machine Learning
Cloud Computing
Enterprise Server

Key Features

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
8 heavy duty hot-swap fans with optimal fan speed control

5th/4th Gen Intel CARD

Configure & Buy Features

NTS Elite Command 1U Server Intel Xeon Scalable Enterprise Platform

1U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 + 1 PCIe 5.0 x16 AIOM slot

Dual Socket E (LGA-4677) 5th/4th Gen Intel^® Xeon^® Scalable processors. 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600. 3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible). 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card. 8 heavy duty hot-swap fans with optimal fan speed control.

Core Technology Aligned with Aspirations

- Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
- Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
- Up to 64C/128T; Up to 320MB Cache per CPU
- Supports up to 350W TDP CPUs (Air Cooled) / (Liquid Cooled)
- 32 DIMM slots; Up to 8TB ECC DDR5 RDIMM
- 3 PCIe 5.0 x16 + 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- NVIDIA Certified

Virtualization

Key application: Virtualization.

Software-defined Storage

Key application: Software-defined Storage.

AI Inference and Machine Learning

Key application: AI Inference and Machine Learning.

Cloud Computing

Key application: Cloud Computing.

Enterprise Server

Key application: Enterprise Server.

Security

Hardware Trusted Platform Module (TPM) 2.0 and Silicon Root of Trust (RoT) – NIST 800-193 Compliant.

High Performance

NVIDIA PCIe: H100, L4, L40S, RTX A4000, RTX A5000

Max GPU Count: Up to 1 double-width or 3 single-width GPUs. 3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards and 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible). Supports NVMe RAID 0/1/5/10 (Intel® VROC RAID key required) and SATA RAID 0/1/5/10.

Power Efficiency

2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies.

System Cooling

Up to 8 counter-rotating 40x40x56mm fans, 2 air shrouds, optional Direct to Chip (D2C) cold plate.

Storage Flexibility

Default 8 front hot-swap 2.5" NVMe/SAS/SATA bays; Option A total 12 bays; 2 M.2 NVMe/SATA slots.

Management Software

SuperCloud Composer®, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA).

PC Health Monitoring

Monitors CPU cores, chipset voltages, memory, fan tachometer/PWM, and thermal control for CPU and chassis environment.

Operating Environment

A2: Operating 10°C to 35°C; non-operating -30°C to 60°C; operating humidity 8% to 80%; non-operating humidity 8% to 90%.

Value-added Management

Management Software

SuperCloud Composer®

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA)

Security and Platform Protection

Hardware Trusted Platform Module (TPM) 2.0 and Silicon Root of Trust (RoT) – NIST 800-193 Compliant. Features include Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, and System Lockdown.

Power-on mode for AC power recovery and ACPI Power Management
1 RJ45 1 GbE Dedicated BMC LAN port
2 USB 2.0 rear ports and 1 USB 3.0 front port
1 VGA port
AMI 64MB SPI Flash BIOS

Barebone

1U - 8x 2.5" Hybrid NVMe - 2x M.2 - 1x AIOM - 900W 1+1 Redundant

Processor

Memory

16GB PC5-38400 4800 MHz DDR5 [+$552.00]
32GB PC5-38400 4800 MHz DDR5 [+$864.00]
64GB PC5-38400 4800 MHz DDR5 [+$1,564.00]
96GB PC5-38400 4800 MHz DDR5 [+$2,791.48]
128GB PC5-38400 4800 MHz DDR5 [+$5,808.00]

M.2 DRIVE

(Max Quantity: 2)

480GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$145.56]
960GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$218.64]
1.92TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$372.21]
3.84TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$687.69]
400GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$167.24]
800GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$251.28]
960GB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$299.00]
1.92TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$465.00]
3.84TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$849.00]

HARD DRIVE

(Max Quantity: 8)

GPU

(Max Quantity: 3)

NVIDIA ® L4 ADA GPU Computing Accelerator - 24GB GDDR6X - PCIe 4.0 x16 - Passive Cooling NVIDIA - Ada Lovelace based GPUs [+$2,279.09]
NVIDIA ® L40 ADA GPU Computing Accelerator - 48GB GDDR6 - PCIe 5.0 x16 - Passive Cooling NVIDIA - Ada Lovelace based GPUs [+$6,808.94]
NVIDIA ® L40S ADA GPU Computing Accelerator - 48GB GDDR6 - PCIe 4.0 x16 - Passive Cooling Nvidia L40S [+$8,099.00]
NVIDIA ® H100 NVL GPU Computing Accelerator - 94GB HBM3 - PCIe 5.0 x16 - Passive Cooling Nvidia H100 NVL [+$25,581.60]

NETWORK ADAPTER

(Max Quantity: 3)

Trusted Platform Module

Trusted Platform Module - TPM 2.0 - Infineon 9670 - Not Provisioned - Vertical [+$99.00]

Power Cables

C13 to NEMA 5-15P3ft AC Power Cord (North America), C13, NEMA 5-15P, 3 ft. [+$9.08]
C13 to NEMA 5-15P6ft AC Power Cord (North America), C13, NEMA 5-15P, 6 ft. [+$9.96]
C13 to NEMA 5-15P10ft AC Power Cord (North America), C13, NEMA 5-15P, 10 ft. [+$12.25]
C13 to C14-1ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 1ft / 0.3M (TAA Compliant) [+$4.79]
C13 to C14-2ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 2ft / 0.6M (TAA Compliant) [+$4.79]
C13 to C14-3ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 3ft / 0.9M (TAA Compliant) [+$4.52]
C13 to C14-4ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 4ft / 1.2M (TAA Compliant) [+$5.58]
C13 to C14-6ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 6ft / 1.8M (TAA Compliant) [+$12.19]

SERVER MANAGEMENT

(Included) Update Manager (SUM) (OOB Management Package)
Supermicro Server Manager (SSM) (DataCenter Management Package) [+$131.52]

I O Modules Networking

Supermicro AIOM OCP 3.0 - 2x 1GbE RJ45 - Intel i350 - PCI-E 2.1 x4 - AOC-AG-i2M [+$470.00]
Supermicro AIOM OCP 3.0 - 2x 10GbE RJ45 - Intel X550-AT2 - PCI-E 3.0 x4 - AOC-ATG-i2TM [+$591.00]
Supermicro AIOM OCP 3.0 - 2x 10GbE SFP+ - Intel XL710-BM2 - PCI-E 3.0 x8 - AOC-ATG-i2SM [+$1,058.00]
Supermicro AIOM OCP 3.0 - 2x 25GbE SFP28 - Broadcom BCM57414 - PCIe 3.0 x8 - AOC-A25G-b2SM [+$866.00]
Supermicro AIOM OCP 3.0 - 2x 10GbE RJ45 - Broadcom BCM57416 - PCIe 3.0 x8 - AOC-ATG-b2TM [+$941.00]
Supermicro AIOM OCP 3.0 - 2x 25GbE SFP28 - Mellanox CX-6 LX - PCIe 3.0 x8 - AOC-A25G-m2SM [+$470.00]
Supermicro AIOM OCP 3.0 - 2x 25GbE SFP28 + 2x 10GbE RJ45 - Mellanox CX4 Lx EN & Intel X550-AT2 - AOC-AH25G-m2S2TM [+$318.00]

VROC

Intel® Virtual RAID on CPU (VROC) - Intel Only Module - RAID 0,1,10,5 [+$49.00]
Intel® Virtual RAID on CPU (VROC) - Standard Module - RAID 0,1,10 [+$149.00]
Intel® Virtual RAID on CPU (VROC) - Premium Module - RAID 0,1,10,5 [+$319.00]

OPERATING SYSTEM

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Software

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]

$0.00
