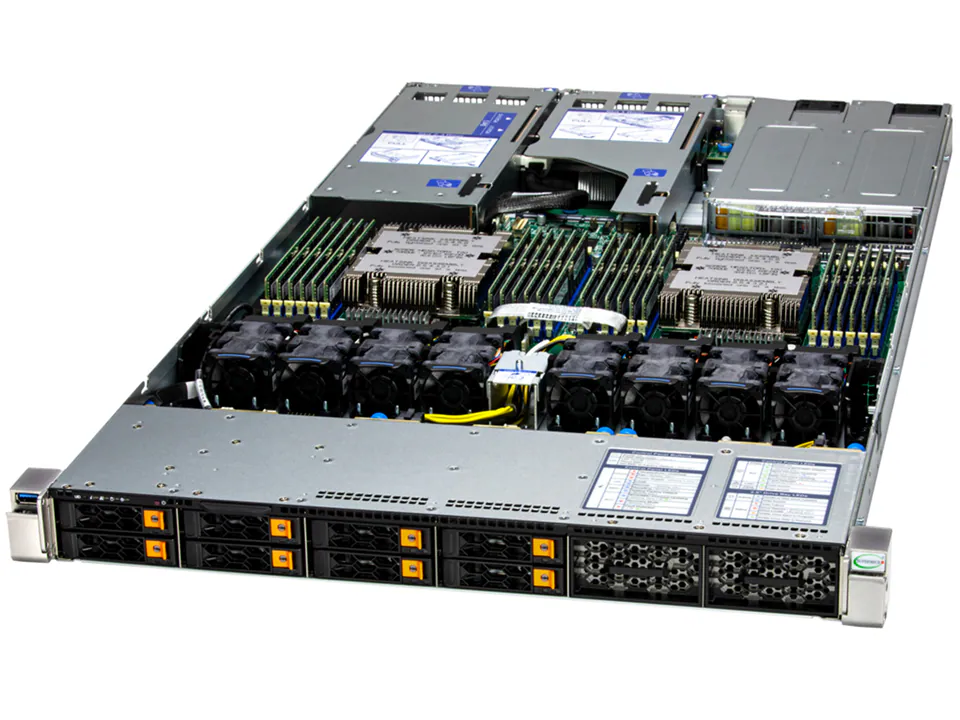

NTS Elite Command 1U Rack Server with 12 Hot‑Swap Bays

1U Hyper with up to 12 hot-swap 2.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 slots + 1 PCIe 5.0 x16 AIOM slot
Part#: CMDA001U12-V1

Key Applications

  • Virtualization
  • Software-defined Storage
  • AI Inference and Machine Learning
  • Cloud Computing
  • Enterprise Server
  • High Performance Computing (HPC)

Key Features

  1. Dual AMD EPYC™ 9005/9004 Series Processors
  2. Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s
    (Please check System Memory Section for detail)
  3. 2 PCIe 5.0 x16 FHFL slots
    1 PCIe 5.0 x16 FHHL slot
  4. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  5. 8 Hot-swap 2.5" NVMe/SATA drive bays
    Optional 4 Hot-swap 2.5" NVMe/SATA drive support via additional parts
    2 M.2 PCIe 3.0 NVMe slots
  6. Dual 1600W / 2000W / 2600W Redundant Titanium Level power supplies
    (Power supply full redundancy based on configuration and application load)
Configure & Buy Specifications



   Form Factor1U Rackmount
Enclosure: 437 x 43 x 778.7mm (17.2" x 1.7" x 30.66")
Package: 672 x 224 x 1100mm (26.46" x 8.82" x 43.31")
Processor
Dual processor(s)
AMD EPYC™ 9005/9004 Series Processors
Up to 384C/768T
System Memory Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Drive Bays Configuration
Default: Total 8 bays
8 front hot-swap 2.5" NVMe*/SATA* drive bays
Option A: Total 12 bays
12 front hot-swap 2.5" NVMe*/SATA* drive bays
(*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list
for details)
M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
Expansion Slots PCI-Express (PCIe) Configuration: Default
1 PCIe 5.0 x16 FHHL slot
2 PCIe 5.0 x16 FHFL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
CXL Support: Up to 4 CXL 2.0 x16 devices
   On-Board Devices Chipset: System on Chip
Network Connectivity: Via AIOM
IPMI: Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
   Input / Output
LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 ports(rear)
1 USB 3.0 port(front)
Video: 1 VGA port
TPM: 1 TPM Onboard/port 80
   System Cooling
Fans: Up to 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud: 2 Air Shrouds
   Power Supply
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
System BIOS
BIOS Type: AMI 64MB SPI Flash EEPROM
BIOS Features: Plug and Play (PnP)
UEFI 2.8
USB Keyboard support
ACPI 6.5
SMBIOS 3.7 or later
Management
SuperCloud Composer®; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); KVM with dedicated
LAN ; IPMI 2.0; Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!; IPMIView
PC Health Monitoring
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU
thermal trip support
Dimensions and Weight
Weight: Gross Weight: 41.4 lbs (18.8 kg)
Net Weight: 19.2 lbs (8.7 kg)
Available Color: Silver
Operating Environment
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
