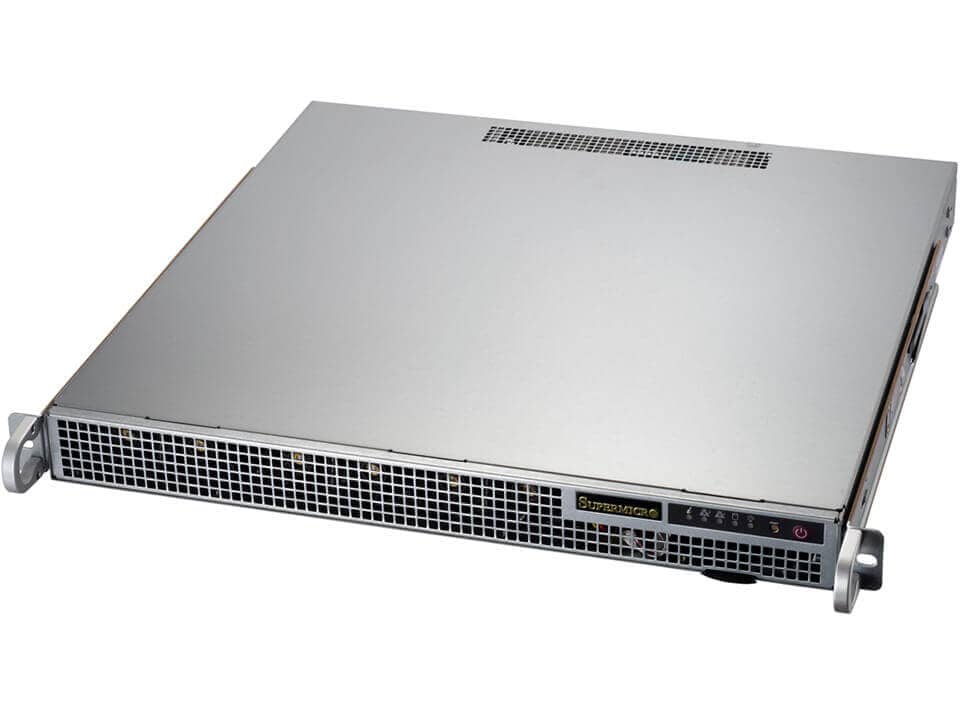

| Form Factor | 1U
Enclosure: 437 x 43 x 429mm (17.2" x 1.7" x 16.9")
Package: 686 x 203 x 610mm (27" x 8" x 24") |
Processor
| Single processor(s)
AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
Up to 16C/32T |
| GPU | Max GPU Count: Up to 1 single-width GPU
Supported GPU: NVIDIA PCIe: RTX 4000 Ada Generation, RTX A4000, L4, A2
AMD PCIe: Radeon Pro W7500
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect |
System Memory
| Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM |
| Drive Bays Configuration | Default: Total 1 bay
1 internal fixed 3.5" SATA drive bay
Option A: Total 4 bays
4 internal fixed 2.5" SATA* drive bays
(*SATA support may require additional storage controller and/or cables, please see the optional parts list for
details)
M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110) |
| Expansion Slots | Default
1 PCIe 5.0 x16 FHHL slot |
On-Board Devices
| SATA: SATA (6Gbps) ; RAID 0/1 support
NVMe: NVMe; RAID 0/1 support(Native)
Chipset: AMD B650
Network Connectivity: 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
2 RJ45 1GbE with Intel® I210-AT
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 3 Type-A ports(Rear)
2 Type-C ports(Rear)
1 Type-C port(Rear)
Video: 1 VGA port
1 DisplayPort 1.4 port
1 HDMI 2 port
Audio: Rear Audio
TPM: 1 TPM header
|
System Cooling
| Fans: Up to 6x 40mm Fan(s)
Air Shroud: 1 Air Shroud
|
Power Supply
| 1x 500W Platinum Level (93%) power supply
|
System BIOS
| BIOS Type: AMI 32MB SPI Flash
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| FAN: Status monitor for speed control
Voltage:
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature,
CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM
Other Features:
8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control
of power-on for recovery from AC power loss, CPU thermal trip support for processor
Temperature: CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
|
Dimensions and Weight
| Weight: Gross Weight: 16 lbs (7.26 kg)
Available Color: Silver
|
Operating Environment
| RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
|
