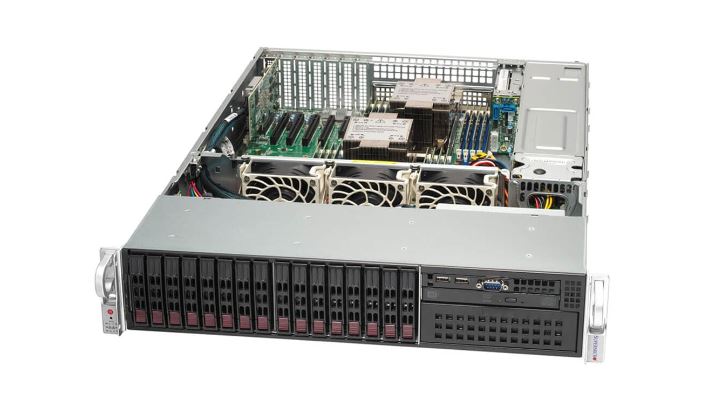

NTS Elite Command 2U Server with Dual Intel Xeon and 16 Drives

2U Mainstream with 5 PCIe 5.0 slots and dual 10GbE LAN

Part#: CMDI002U16

Key Applications

Virtualization Enterprise Server
Application and data serving Compute Intensive Applications

Key Features

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
4 PCIe 5.0 x16 Low Profile (LP), 1 PCIe 5.0 x8 Low Profile (LP)
16 hotswap 2.5" drive bays with 8 SAS RAID (0, 1, 5, 6, 10, 50, 60) and 8 SATA drive support
1200W Redundant Titanium level Power Supplies

Configure & Buy Specifications

Form Factor	2U Rackmount Enclosure: 437 x 89 x 630mm (17.2" x 3.5" x 24.8") Package: 737 x 279 x 983mm (29" x 11" x 38.7")
Processor	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
System Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Drive Bays Configuration	Default: Total 16 bays 4 front hot-swap 2.5" NVMe/SAS/SATA drive bays 4 front hot-swap 2.5" SAS/SATA drive bays 8 front hot-swap 2.5" SAS/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables) M.2: 2 M.2 NVMe slots (M-key) Peripheral Bays: 1 slim DVD bay (optional)
Expansion Slots	Default 4 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x8 LP slot
On-Board Devices	Chipset: Intel® C741 Network Connectivity: 2 RJ45 10GbE
Input / Output	LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 2.0 ports(front) 4 USB 3.0 ports(rear) Video: 1 VGA port DOM: 2 SuperDOM (Disk on Module) ports
System Cooling	Fans: Up to 3x 8cm heavy duty fans with optimal fan speed control
Power Supply	2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
System BIOS	BIOS Type: AMI 32MB SPI Flash EEPROM
Management	SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
PC Health Monitoring	CPU: Monitors for CPU Cores, Chipset Voltages, Memory FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
Dimensions and Weight	Weight: Gross Weight: 63 lbs (28.8 kg) Net Weight: 38 lbs (17.4 kg) Available Color: Black
Operating Environment	RoHS Compliant Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
Chassis	CSE-213BTS-R1K23LPBP3-1

Barebone

2U - 16x 2.5" SAS/SATA (4x NVMe Hybrid) - 2x M.2 - Dual 10GbE - 1200W 1+1 Redundant

Processor

Memory

16GB PC5-38400 4800 MHz DDR5 [+$1,104.00]
32GB PC5-38400 4800 MHz DDR5 [+$1,728.00]
64GB PC5-38400 4800 MHz DDR5 [+$3,128.00]
96GB PC5-38400 4800 MHz DDR5 [+$5,582.96]

M.2 DRIVE

(Max Quantity: 2)

480GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$145.56]
960GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$218.64]
1.92TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$372.21]
3.84TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$687.69]
400GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$167.24]
800GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$251.28]
960GB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$299.00]
1.92TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$465.00]
3.84TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$849.00]

HARD DRIVE

(Max Quantity: 16)

CONTROLLER CARD

Included Supermicro AOC-S3908L-H8iR-16DD RAID Controller -PCIe 4.0 x8 8GB Cache PCIe 4.0 x8 [+$682.40]
Supermicro AOC-S3916L-H16iR-32DD RAID Controller PCIe 4.0 x8 8GB Cache PCIe 4.0 x8 [+$941.00]

NETWORK ADAPTER

(Max Quantity: 4)

Trusted Platform Module

Supermicro AOM-TPM-9670V-S - Trusted Platform Module - TPM 2.0 - X11 X12 - Server Provisioned - Vertical [+$40.88]

Power Cables

C13 to NEMA 5-15P3ft AC Power Cord (North America), C13, NEMA 5-15P, 3 ft. [+$9.08]
C13 to NEMA 5-15P6ft AC Power Cord (North America), C13, NEMA 5-15P, 6 ft. [+$9.96]
C13 to NEMA 5-15P10ft AC Power Cord (North America), C13, NEMA 5-15P, 10 ft. [+$12.25]
C13 to C14-1ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 1ft / 0.3M (TAA Compliant) [+$4.79]
C13 to C14-2ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 2ft / 0.6M (TAA Compliant) [+$4.79]
C13 to C14-3ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 3ft / 0.9M (TAA Compliant) [+$4.52]
C13 to C14-4ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 4ft / 1.2M (TAA Compliant) [+$5.58]
C13 to C14-6ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 6ft / 1.8M (TAA Compliant) [+$12.19]

SERVER MANAGEMENT

(Included) Update Manager (SUM) (OOB Management Package)
Supermicro Server Manager (SSM) (DataCenter Management Package) [+$131.52]

VROC

Intel® Virtual RAID on CPU (VROC) - Intel Only Module - RAID 0,1,10,5 [+$49.00]
Intel® Virtual RAID on CPU (VROC) - Standard Module - RAID 0,1,10 [+$149.00]
Intel® Virtual RAID on CPU (VROC) - Premium Module - RAID 0,1,10,5 [+$319.00]

OPERATING SYSTEM

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Software

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty (Zone 0) [+$100.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service (Zone 0) [+$450.00]
4 Year Advanced Parts Replacement Warranty (Zone 0) [+$255.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service (Zone 0) [+$775.00]
5 Year Advanced Parts Replacement Warranty (Zone 0) [+$576.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service (Zone 0) [+$1,216.00]
