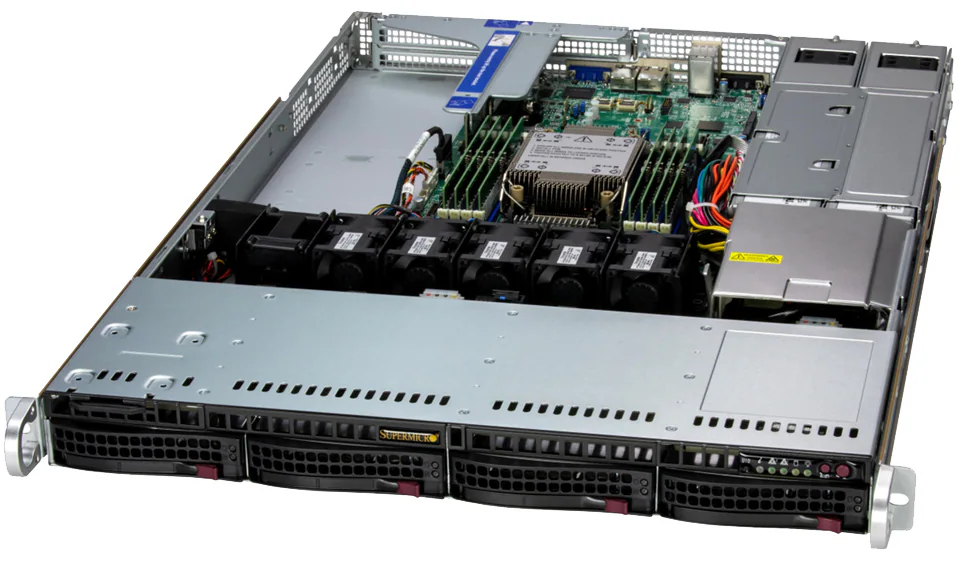

| Form Factor | 1U
Enclosure: 437 x 43 x 650mm (17.2" x 1.7" x 25.6")
Package: 597 x 216 x 856mm (23.5" x 8.5" x 33.7") |
Processor
| Single Socket E2 (LGA-4710)
Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
P-cores: Up to 86C/172T; Up to 336MB Cache
E-cores: Up to 144C/144T; Up to 108MB Cache |
| GPU | Max GPU Count: Up to 1 double-width or 2 single-width GPUs
Supported GPU: NVIDIA PCIe: RTX 2000 Ada, RTX 4000 Ada Generation
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect |
System Memory
| Slot Count: 8 DIMM slots/8 Channels
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 4 bays
4 front hot-swap 3.5" SAS*/SATA drive bays
Option A: Total 4 bays
4 front hot-swap 3.5"/2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for
details)
M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110; VROC required for RAID)
Peripheral Bays: 2 slim peripheral bays |
| Expansion Slots | Default
2 PCIe 5.0 x16 FHFL slots
1 PCIe 5.0 x8 (in x16) LP slot |
On-Board Devices
| SATA: SATA (6Gbps)
NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset: System on Chip
Network Connectivity: 2 RJ45 1GbE with Intel® I210
|
Input / Output
| LAN: 2 RJ45 1 GbE LAN ports
1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB: 2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 3.2 Gen1 ports(Header)
Video: 1 VGA port
Serial: 1 COM port(Rear)
1 COM port(Header)
TPM: 1 TPM header
|
System Cooling
| Fans: Up to 1 AOC cooling Fan(s) (optional)
Up to 5 middle cooling PWM 40x40x56mm Fan(s)
Air Shroud: 1 CPU Air Shroud
|
Power Supply
| 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 64MB SPI Flash EEPROM
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro ThinAgent Service (TAS); SuperServer Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
8 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 34.5 lbs (15.46 kg)
Net Weight: 21.5 lbs (9.75 kg)
Available Color: Black
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
|
